tekton과 argocd를 이용한 GitOps 구축하기

tekton과 argocd를 사용하여 GitOps 구축을 해보자.



전체적인 구성은 다음과 같다.



전체적인 과정을 보면



  1) Tekton을 이용하여 소스를 빌드 후 Registry에 저장한다.

  2) Manifest를 저장하는 Git 저장소에 빌드된 이미지 tag를 업데이트한다.

  3) ArgoCD에서 Manifest 저장소의 갱신여부를 확인하여 Kubernetes에 apply한다.



각 과정별 진행과정을 살펴보자.

1) Tekton 및 Kaniko

먼저 Tekton 실행에 필요한 script들을 알아보자.



소스 Clone

kubectl apply -f https://raw.githubusercontent.com/tektoncd/catalog/main/task/git-clone/0.9/git-clone.yaml

build-kaniko-git



apiVersion: tekton.dev/v1beta1
kind: Task
metadata:
  name: build-kaniko-git
  namespace: test
spec:
  params:
  - name: app_repo
    type: string
  - name: container_image
    type: string
  - name: container_tag
    type: string
  steps:
  - args:
      - --context=./
    - --destination=$(params.container_image):$(params.container_tag)
    - --force
    - --skip-tls-verify
    command:
    - /kaniko/executor
    image: gcr.io/kaniko-project/executor:debug
    name: build
    resources: {}
    volumeMounts:
    - mountPath: /kaniko/.docker/
      name: kaniko-secret
    workingDir: /workspace/output/
  volumes:
  - name: kaniko-secret
    secret:
      items:
      - key: .dockerconfigjson
        path: config.json
      secretName: github-regcred
  workspaces:
  - name: output
    optional: true

Secret

kubectl create secret docker-registry github-regcred --docker-username=user --docker-password=password --docker-email=email [--docker-server=string]

Pipeline

apiVersion: tekton.dev/v1beta1
kind: Pipeline
metadata:
  name: pipeline
spec:
  params:
    - name: giturl
      description: |
            THIS PARAMETER COMING FROM TRIGGER TEMPLATE
  workspaces:
  - name: shared-data
    description: |
      This workspace will receive the cloned git repo and be passed
      to the next Task for the repo's README.md file to be read.
  tasks:
  - name: fetch-repo
    taskRef:
      name: git-clone
    params:
    - name: url
      value: $(params.giturl)
    workspaces:
    - name: output
      workspace: shared-data
  - name: build-container-image
    runAfter: ["fetch-repo"]
    taskRef:
      name: build-kaniko-git
    params:
    - name: app_repo
      value: dir:///workspace/output/
    - name: container_image
      value: ghcr.io/kmaster8/myimage
    - name: container_tag
      value: $(tasks.fetch-repo.results.commit)
    workspaces:
    - name: output
      workspace: shared-data

Pipeline Run

apiVersion: tekton.dev/v1beta1
kind: PipelineRun
metadata:
  generateName: pipelinerun-
spec:
  serviceAccountName: tekton-sa
  pipelineRef:
    name: pipeline
  params:
    - name: giturl
      value: https://github.com/kmaster8/flask-helloworld.git
  workspaces:
  - name: shared-data
    volumeClaimTemplate:
      spec:
        accessModes:
        - ReadWriteOnce
        resources:
          requests:
            storage: 1Gi

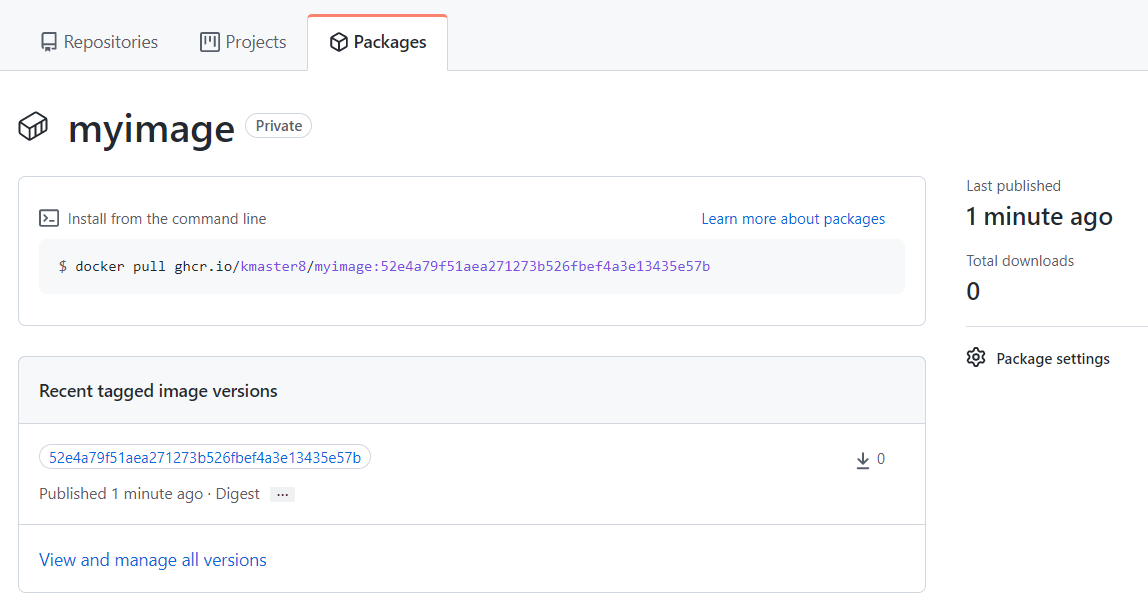

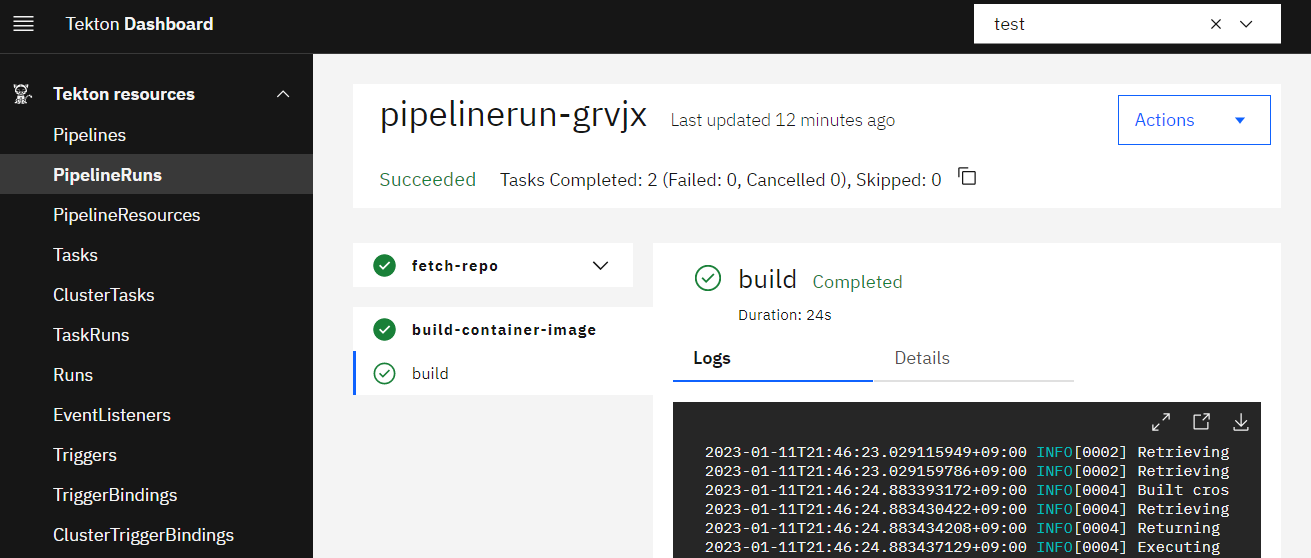

파이프라인을 실행하면 아래와 같이 Image가 Push 되는것을 확인할 수 있다.



Manifest 수정

Image Push까지 완료되는  CI ( continuous integration ) 과정은 끝났다. 이제 Kubernetes 배포용 Menifest를 생성(수정) 하여 ArgoCD를 이용하여 배포하는 CD ( continuous development ) 과정을 알아보자.



apiVersion: tekton.dev/v1beta1
kind: Task
metadata:
  name: manifest-deploy
spec:
  params:
  - name: repositoryurl
    description: ""
    type: string
    default: github.com/kmaster8/sample-manifest-repo.git
  - name: imageurl
    description: Image url
    type: string
  - name: imagetag
    description: Image tag
    type: string
  steps:
    - name: auto-deploy-to-devl
      image: docker.io/alpine/git:v2.26.2@sha256:23618034b0be9205d9cc0846eb711b12ba4c9b468efdd8a59aac1d7b1a23363f #tag: v2.26.2
      env:
      - name: GIT_USERNAME
        valueFrom:
          secretKeyRef:
            name: github-credentials
            key: username
      - name: GIT_PASSWORD
        valueFrom:
          secretKeyRef:
            name: github-credentials
            key: password
      script: |
        #!/usr/bin/env sh
        wget https://github.com/mikefarah/yq/releases/download/v4.2.0/yq_linux_amd64.tar.gz -O - | tar xz && mv yq_linux_amd64 /usr/bin/yq
        git config --global user.name "Tekton Bot"
        git config --global user.email "kmaster8k@gmail.com"
        git clone "https://${GIT_USERNAME}:${GIT_PASSWORD}@$(params.repositoryurl)" deploy-repo && cd "deploy-repo"
        yq e '.hello.hello.image.repository = "$(params.imageurl)"' -i values.yaml
        yq e '.hello.hello.image.tag = "$(params.imagetag)"' -i values.yaml
        git add values.yaml
        git commit -m "update"
        git push
        if [[ $? -eq 0 ]]
        then
          echo "Auto deployment triggered"
          exit 0
        else
          echo "Auto deployment failed"
          exit 1
        fi



ArgoCD 설정

argocd설정은 다음을 참고한다.

https://kmaster.tistory.com/82

argocd (활용 - helm chart 및 Kustomize 배포)
